Description
Product Description

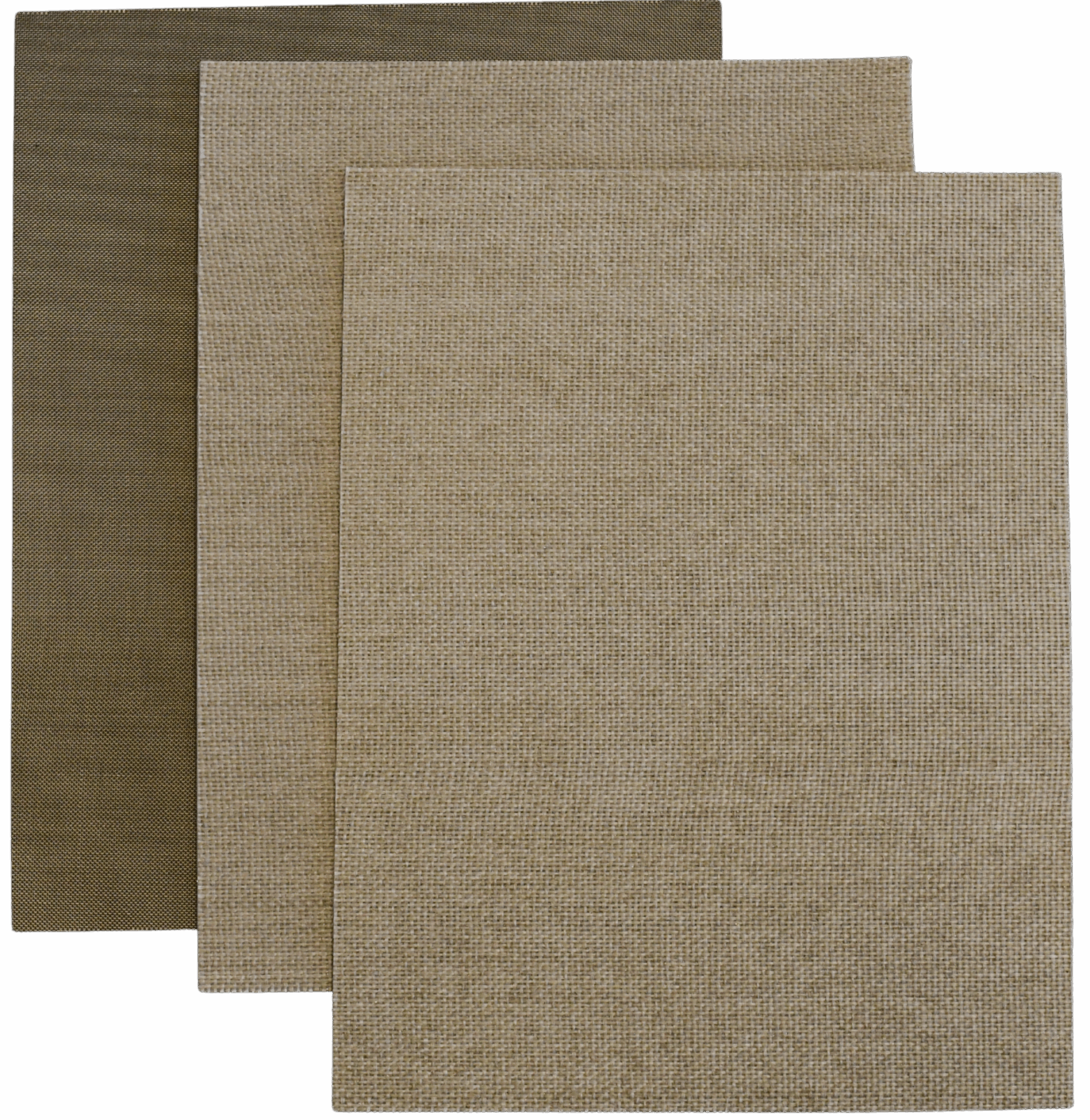

The flame and thermal barrier (FTB) portfolio integrates flame barrier materials with AeroZero® thermal insulation. The FTB products are typically supplied with a high-performance engineering grade silicone pressure sensitive adhesive (PSA) on the non-flame facing side for bonding to a substrate. Typical use is protection of parts exposed to flames and high heat -temperatures ranging from 500 °C to 1200°C. Potential substrate parts include carbon fiber reinforced polymer (CFRP) composites, metallic parts including titanium, stainless steel and aluminum, and engineering thermoplastics such as polyether ether ketones (PEEK).
Application
Prior to peeling the release liner from the adhesive,
ensure the substrate is clean and free of loose particles. Standard application temperature is
25 °C (77 °F) and the recommended set time for optimal adhesion is three days prior to testing.
The minimum application temperature is 10 °C (50 °F) and minimum set time is 24 hours before performing any tests. Increasing temperature and dwell time may increase adhesion strength.
Features
Ultra-thin (<2 mm)
Lightweight, highly flexible
PFAs free and halogen-free
Very low thermal conductivity
High dielectric strength
Wraps easily over complex shapes
Proven to withstand direct flame at 1,100 ºC for up to 30-minutes
Standard Dimensions
Test Sample: 216 x 280 mm (8.5 x 11 in)
Sample roll: 304mm x 3.05m (1 x 10 ft)
Standard roll: 304mm x 30.5m (1 x 100 ft)
Storage
Recommended Storage Conditions:
Temperature: below 25 °C (77 °F)
Relative Humidity: below 50%
