Polyimide Aerogel Laminates
AeroZero®
Polyimide Aerogel Laminates
AeroZero® offers properties never before available in a single material, enabling product designers to innovate lightweight, high-performance products.
Light in Weight, Strong on Performance
AeroZero® is an advanced porous material produced using a synthetic organic polymer that exhibitshigh strength to density ratios, extreme temperature durability, low thermal conductivity and anultra low dielectric constant. AeroZero® film, available in 5 mil thickness with thermal conductivity 30 mW/m*K, is used as the core layer in multi-layer laminate constructions to provide lightweight materials with excellent thermal insulation and ultra low dielectric properties.
AeroZero® Laminate Product Platforms

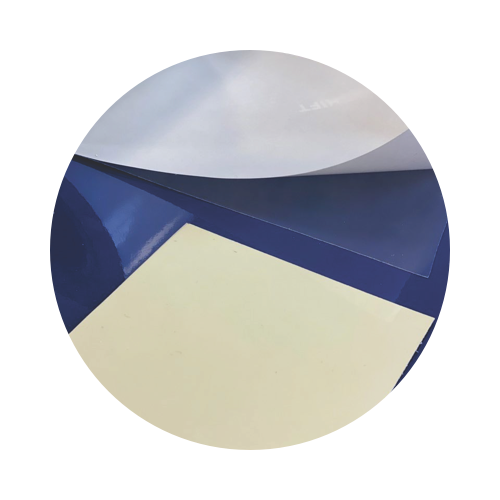

THERMAL MANAGEMENT LAMINATES
SILICONE ADHESIVE
- Lightweight (85% Air)
- Very Thin with Small Footprint
- Low Thermal Conductivity
- Good Mechanical Properties for Low Density Material
- Easy Bonding due to High Surface Area/Energy
Aerospace & Defense
Electronics
LAMINATE CONSTRUCTION

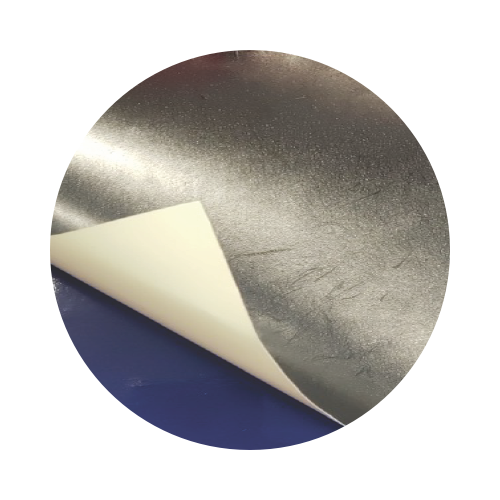

THERMAL MANAGEMENT LAMINATES
(ULTRA HIGH TEMP.)
METAL OR GRAPHITE
- Extremely High 1000 °C Thermal Capability
- Increased Efficiency Due to Weight Reduction
- Excellent Thermal Management
- High Performance Hot Spot Reduction
Aerospace & Defense
LAMINATE CONSTRUCTION
Double-Sided Laminate
Single-Sided Laminate

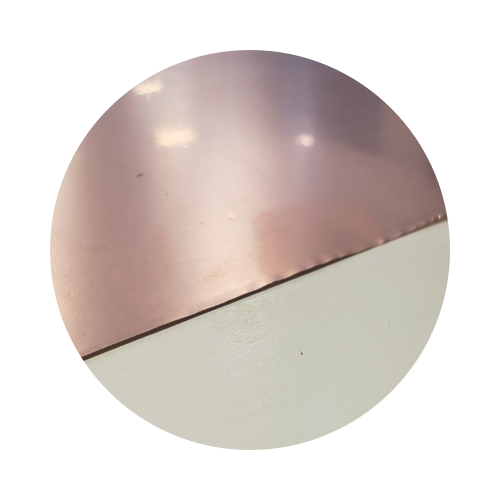

CU CLAD FLEX & MULTI-LAYER LAMINATES
COPPER/AEROZERO®
- Ultra Low Dk/Df
- High Tg Greater Than (300 °C)
- High Heat Resistance (550 °C @ 10% wt)
- Ease In Incorporating In Multi-layer Stacks
- For Flex and Rigid Substrates
Information Communication Technology (ICT)
LAMINATE CONSTRUCTION
Double-Sided Laminate
Double-Sided Laminate

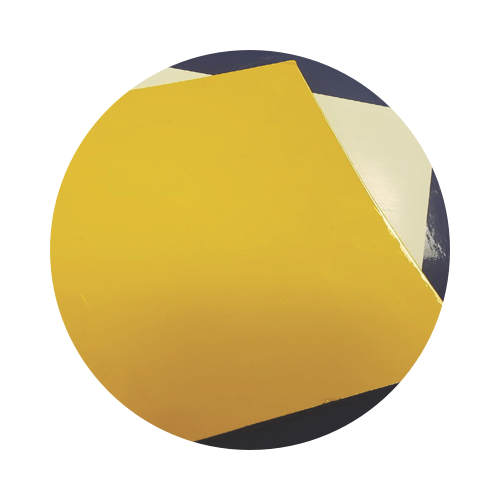

RADOME & ANTENNA SUBSTRATES
POLYIMIDE FILM
- Ultra Low Dk/Df
- Enables Small Footprint/Tight Designs
- Lightweight
- High Thermal Stability
- Ability For AeroZero® To Conform 2-Dimensionally
Aerospace & Electronic Communication
LAMINATE CONSTRUCTION
Double-Sided Laminate
Single-Sided Laminate
Specifications
| Product Platform AeroZero® (AZ) | Single or Double Sided | Substrate | Adhesive | Substrate Thickness | Adhesive Thickness | Total Laminate Thickness |
|---|---|---|---|---|---|---|
|
Product Platform AeroZero® (AZ)
AZ + Silicone PSA
|
Single or Double Sided
Single
|
Substrate
None
|
Adhesive
Silicone PSA
|
Substrate Thickness
N/A
|
Adhesive Thickness
1 Mil
25 µm |
Total Laminate Thickness
6 Mil
150 µm |
|
Product Platform AeroZero® (AZ)
AZ + Metal
|
Single or Double Sided
Single
|
Substrate
Aluminum
|
Adhesive
Silicone PSA
|
Substrate Thickness
2 Mil
50 µm |
Adhesive Thickness
1 Mil
25 µm |
Total Laminate Thickness
8 Mil
200 µm |
|
Product Platform AeroZero® (AZ)
AZ + Graphite
|
Single or Double Sided
Single
|
Substrate
Graphite
|
Adhesive
Silicone PSA
|
Substrate Thickness
2 Mil
50 µm |
Adhesive Thickness
1 Mil
25 µm |
Total Laminate Thickness
8 Mil
200 µm |
|
Product Platform AeroZero® (AZ)
AZ + Copper
|
Single or Double Sided
Double
|
Substrate
Copper
|
Adhesive
Proprietary
|
Substrate Thickness
0.7 Mil
18 µm |
Adhesive Thickness
1 Mil
25 µm |
Total Laminate Thickness
8.4 Mil
210 µm |
|
Product Platform AeroZero® (AZ)
AZ + Polyimide
|
Single or Double Sided
Single
|
Substrate
Polyimide
|
Adhesive
FEP
|
Substrate Thickness
1 Mil
25 µm |
Adhesive Thickness
1 Mil
25 µm |
Total Laminate Thickness
7 Mil
180 µm |
|
Product Platform AeroZero® (AZ)
AZ + Polyimide
|
Single or Double Sided
Double
|
Substrate
Polyimide
|
Adhesive
FEP
|
Substrate Thickness
1 Mil
25 µm |
Adhesive Thickness
1 Mil
25 µm |
Total Laminate Thickness
9 Mil
230 µm |
Standard sample size: 6 in. x 12 in. (15 cm x 30 cm)
Copper Clad standard size: 6 in. x 9 in. (15 cm x 23 cm)
Copper Clad standard size: 6 in. x 9 in. (15 cm x 23 cm)
SEE WHAT AEROZERO® CAN DO FOR YOU
We work closely with our customers to create customized solutions that tackle application challenges. AeroZero® polymer aerogel has solved product development problems enabling a wide range of industry applications. Learn more about how AeroZero® enables innovative designs and contact Blueshift today.
